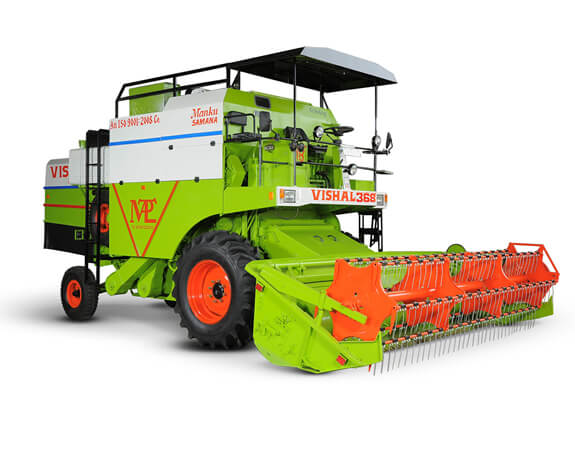

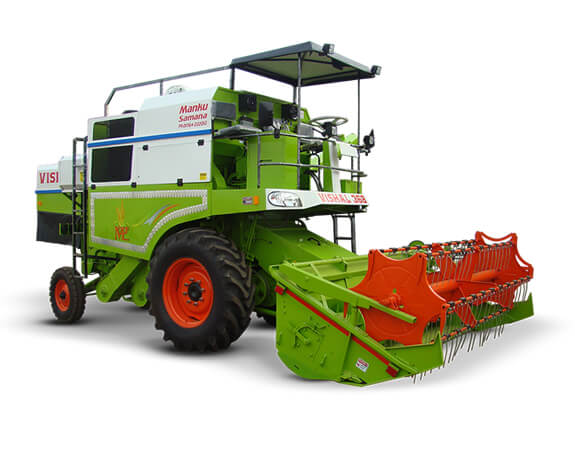

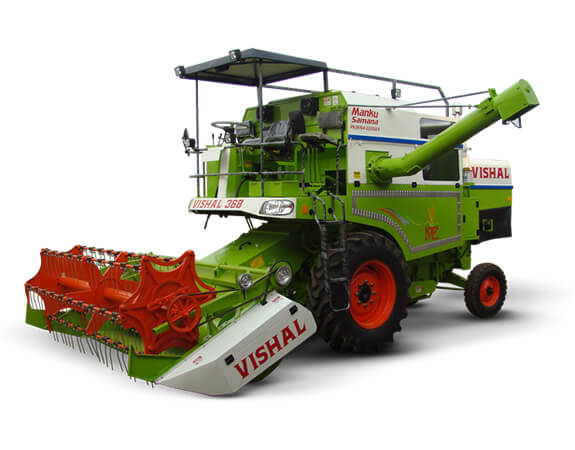

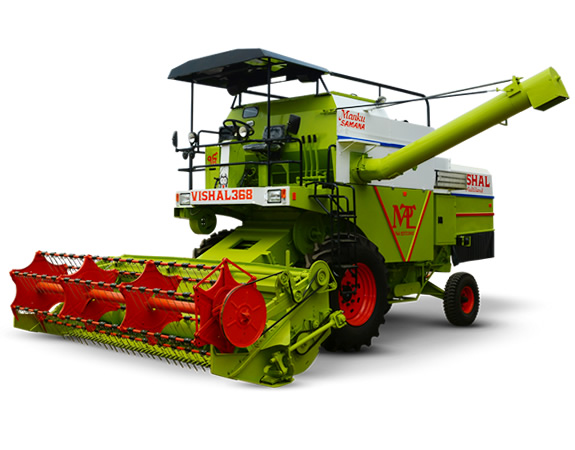

VISHAL 368 Multiland (31")

Self Propelled Combine Harvesters

VISHAL
VISHAL
VISHAL
VISHAL

Model: VISHAL 368 Multiland

Category: Combine Harvester

Type: Straw Walker

Cutter Bar: 7 Feet

No. of Straw Walkers: 3 (Three)

Engine: ASHOK Leyland / Kirloskar

Harvesting: Multicrop

Steering: Power Steering

VISHAL 368 Multiland is self propelled combine harvester that harvests grain crops in three separate operations comprising harvesting, reaping, threshing and winnowing into a single process. Among the crops harvested with this combine harvester are wheat, oats, rye, barley, soybean, sunflower, grame and pulses. The waste straw left behind on the field is the remaining dried stems and leaves of the crop with limited nutrients which is either chopped and spread on the field or baled for feed and bedding for livestock. VISHAL Combine Harvesters are one of the most economically important labour and time saving harvesting machines, significantly reducing the fraction of the population that must be engaged in agriculture.

Features and Highlights:

  • High Road Speed
  • High Ground Clearance
  • Very Low Cutting Height
  • Power Steering
  • Power Coated Body Paint for Long Life
  • Heavy Duty Disc Break
  • Heavy Duty 4 Speed Gear Box
  • Stainless Steel Elevators
  • Heavy Duty Double Reel
  • Wide Straw Walker
  • Extra Cpacity Diesel Tank
  • Thorough Threshing
  • Clear Separation
  • No Grain Breakage
  • High Grain Cleanness
  • Small Turning Radius
  • Easy to Maintain
  • Suitable for Wheat, Paddy, Soyabean, Sunflower & Mustard
  • Good maneuverability in the Wet and Soft Fields
  • Well adaptation to the crops of slightly wet, lodged, or hard to thresh
MANUFACTURER MANKU Agro Tech Private Limited.
Address of Manufacturer Sehajpura Road, Samana - 147101, Distt. Patiala, Punjab. INDIA
MAKE VISHAL
Model 368 - Multiland
Type Self Propelled Combine Harvester
ENGINE
Make ASHOK LEYLAND
Model ALU 400
Type Four Stroke, Water Cooled, Direct Injection Diesel Engine.
Maximum Speed at no load 2400 RPM
Rated Speed 2200 RPM
Rated Speed for Field Operations 1750
No. of Cylinder Six
THRESHING DRUM FOR WHEAT FOR PADDY
Type Rasp Bar Peg Tooth
Width (mm) 1145 1145
Outside dia (mm) 605 600
Range of speed corresponding to 7 RPM of engine (RPM)
Minimum 573 573
Maximum 1034 1034
STRAW WALKER
No. of Straw Walker Five
Type Closed Rack Type. Serrated side edges with 6 steps on each Straw Walker.
Size of each Straw Walker
Length (mm) 3990
Width  (mm) 210
Area (M2) 0.82
Effective separating area of straw walker (M2) 4.66
Lift/throw (mm) 140/140
Oscillation per minute corresponding to 1750 RPM of Engine 152
GRAIN TANK
Location On top of Combine, Behind Operator’s Seat.
Capacity: Volume Basis (M3) 1.566
Capacity: Mass Basis (kg) 1300
TYRES
Front 18.4-30, 12PR
Rear 9.00, 16PR
Break System Disc Brake
Ground Clearance 1761
CONCAVE FOR WHEAT FOR PADDY
Overall  Width of Concave (mm) 1165 1160
Effective Width (mm) 1130 1125
Type of concave Open flat bars Open flat bars with pegs in three rows.
No. of Bars 12 8
No. of Pegs per bars - 15 nos in two rows and 16 nos in one row
CLEANING SIEVES
TOP Sieve
No of sieve Two
Type Open lip frog mouth type
Overall size of sieve FRONT REAR
Length (mm) 1240 1240
Width (mm) 1090 635
Effective cleaning area (m2) 1.21 0.58
Area of extension (m2) NIL NIL
BOTTOM SIEVE
No of Sieve One
Type Open Lip Frog Mouth Type
Length (mm) 1400
Width (mm) 1090
Effective Cleaning Area (m2) 1.37
Oscillation per minute corresponding to 1750 RPM of engine 280
Method of varying oscillation None
Height of lips at maximum opening (mm) 25
No. & type of bearings of sieve shaker assembly 8 Ball Bearings (6205FLT Polland) 12 Rubber Bushes on linkages of shaker mechanism.
CUTTER BAR ASSEMBLY
Working width with shoes (mm) 4030
Effective cutter bar width (mm) 3960
No. & Spacing of knife guards 52 (26 Pairs), 80 mm Apart
No. & Type of knife blades 54, Serrated
Details of knife drive End of Cutter Bar is connected with a lever to the Pittman shaft and oscillated by a crank arm.
Knife Safety Arrangements Knife Guard Provided
Knife stroke(mm) 90
Stroke per minute 840
Knife speed corresponding to 1750 rpm of engine (m/sec.) 1.26
Type of Crop dividers Shoe
REEL ASSEMBLY
Type Tyne Bar Pick Up
Number of Tyne bars Five
Size of Tyne bars (mm) 3860 x 27
Types of Tyne bars Hollow metallic pipe with holes for fitting spring Tynes.
Dia of Reel (mm) 975
Width of Reel (mm) 4150
Range of speed corresponding to 1750 RPM of Engine (RPM) Maximum: 71 Minimum: 28
Arrangements for speed variation Mechanical,Stepless V – Pulley with mechanical variator.
Number of tynes on each bar and their spacing 36 (18 pairs), Spacing 102 mm
Transmission System
CLUTCH
Type Dry Friction Disc
Size (mm) 310
GEAR BOX & DIFFERENTIAL
Type Mechanical, combination of constant and sliding mesh spur gear with differential unit.
No. of Speeds Six Forward and Two Reverse with Stepless Hydraulic Variator Pulley.
OVERALL DIMESIONS Working Transport
Length (mm) 8220 12220
Width (mm) 6370 3130
Height 3820 3820
Weight 9200 kg +
